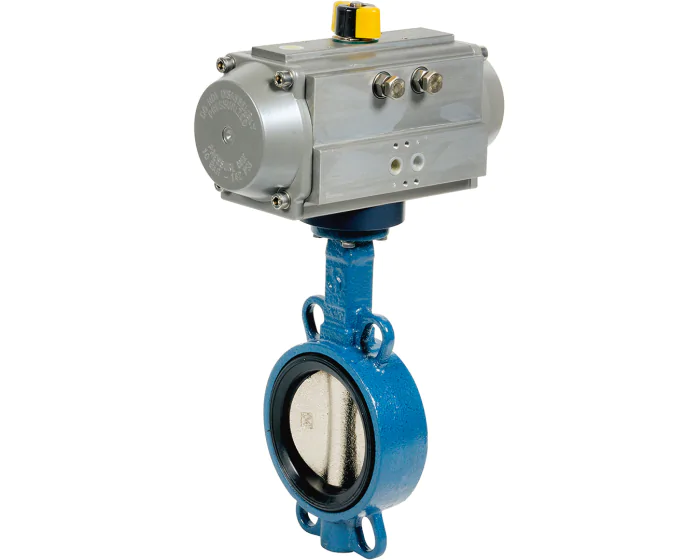

The 1121 wafer butterfly valve has a ductile iron body, a stainless steel disc 1.4408 and a NBR seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | NBR |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Double acting | 262203017006R | S1001530 |
€180.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Spring return | 262203017107R | S1001531 |
€228.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 262204017006R | S1001532 |
€188.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 262204017107R | S1001533 |
€236.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 262205017007R | S1001534 |
€211.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 262205017108R | S1001535 |
€285.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 262206017007R | S1001536 |
€217.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 262206017108R | S1001537 |
€291.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 262207017008R | S1001538 |
€276.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 262207017110R | S1001539 |
€459.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 262208017008R | S1001540 |
€300.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 262208017110R | S1001541 |
€466.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 262209017009R | S1001542 |
€358.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 262209017111R | S1001543 |
€594.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 262210017010R | S1001544 |
€520.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 262210017112R | S1001545 |
€765.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN250 - 10'' | 262211017011R | S1001546 |
€975.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN250 - 10'' | 262211017113R | S1001547 |
€1,320.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN300 - 12'' | 262212017012R | S1001548 |
€1,124.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN300 - 12'' | 262212017115R | S1001549 |
€2,017.89
(excl. btw)
|
add to cart |
